While climbing the success ladder, it is of equal cerebration for us to deliver an impeccable range of Pan Mixer. This pan mixer is demanded among customers owing to its sturdy design. Our pan mixer is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered pan mixer is accessible in assorted specifications to meet the needs of the customers.
Features
Other Details:
Efficient Sand Preparation
Hardic Engineering is top rated Pan mixer machine suppliers india. Our batch type pan mixers are specially designed with sturdy construction. Only best QUALITY and tested raw materials are used and hence long life is ensured even at high working rate. RUBBER & POLIURATHANE sealing arrangement Guarantees against any sand intrusion in the centre bearings, hinge bearings or roller bearings. Apart from the scrapers which are wearing parts in a sand mixer, wear is least for all the other components.
Constructional features :

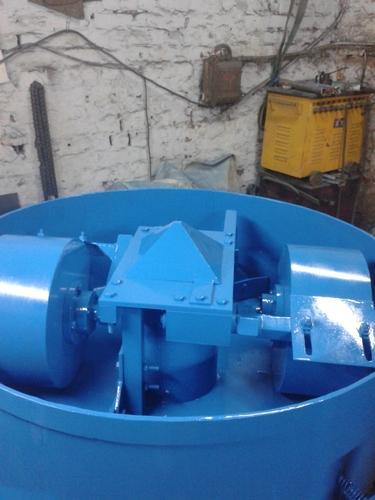

Mullers : The PAN MIXER has two mullers with wide mulling face and proper weight to give efficient and maximum mulling action without crushing the sand. The mullers are in hinges and supported by springs which keep the mullers floating over the sand with Constant pressure. The gap between the mullers and pan plate can be easily varied to get the required strength.
Scrapers: Two scrapers are provided and are so designed that one brings the sand under the muller and the other takes it out. The scrapers are braced with tungsten carbide tips.
Crib : The crib is fabricated from MS plates and reinforced at the top and bottom to prevent any distortion while the machine is working. The crib is bolted to the pan base and is detachable for maintenance purpose
Specification:
| Capacity | Motor |
Muller Size (DIA X WIDTH) | R.P.M | Diamerer |
| 50 KG | 2 H.P | 10 X 6 (INCH) | 24 28 | 600 MM |
| 100 KG | 5 H.P | 12 X 7.1/2 (INCH) | 24 28 | 900 MM |
| 150 KG | 5 H.P | 12 X 7.1/2 (INCH) | 24 28 | 1000 MM |
| 250 KG | 7.5 H.P | 16 X 7.1/2 (INCH) | 24 28 | 1200 MM |
| 500 KG | 15 H.P | 16 X 10 (INCH) | 24 28 | 1500 MM |
| 750 KG | 20 H.P | 20 X 10 (INCH) | 24 28 | 1800 MM |
| 1000 KG | 25 H.P | 20 X 14 (INCH) | 24 28 | 2000 MM |
