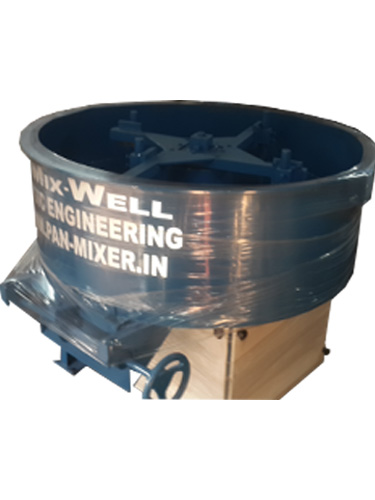

Pan Mixer 150-kg

Features

Batch type Pan Mixer sturdy construction

Long life even at high working rate

RUBBER & POLIURATHANE sealing arrangement

Two mullers with wide mulling face

Range :

Starting from 100 kgs to 1000 kgs / Batch.

Efficient Sand Preparation

HARDIC batch type Pan mixer machine is specially designed with sturdy construction. Only best QUALITY and tested raw materials are used and hence long life is ensured even at high working rate. RUBBER & POLIURATHANE sealing arrangement Guarantees against any sand intrusion in the centre bearings, hinge bearings or roller bearings. Apart from the scrapers which are wearing parts in a sand mixer, wear is least for all the other components.

Constructional features :

Mullers : The PAN MIXER has two mullers with wide mulling face and proper weight to give efficient and maximum mulling action without crushing the sand. The mullers are in hinges and supported by springs which keep the mullers floating over the sand with Constant pressure. The gap between the mullers and pan plate can be easily varied to get the required strength.

Scrapers: Two scrapers are provided and are so designed that one brings the sand under the muller and the other takes it out. The scrapers are braced with tungsten carbide tips.

Crib : The crib is fabricated from MS plates and reinforced at the top and bottom to prevent any distortion while the machine is working. The crib is bolted to the pan base and is detachable for maintenance purpose

Sample Availability: Yes

BRAND: Mix Well

Supplier Product Code: HE / 001

Specification:

Capacity	Motor	R.P.M	Diamerer
50 KG	2 H.P	24 28	600 MM
100 KG	5 H.P	24 28	900 MM
150 KG	5 H.P	24 28	1000 MM
250 KG	7.5 H.P	24 28	1200 MM
500 KG	15 H.P	24 28	1500 MM
750 KG	20 H.P	24 28	1800 MM
1000 KG	25 H.P	24 28	2000 MM
