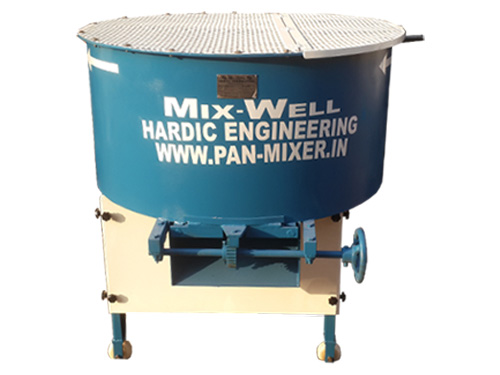

Fly Ash Pan Mixer
Product Range
- Pan Mixer
- Pan Mixer 1000Kg
- Fly Ash Pan Mixer
- Pan Mixer 250Kg
- Pan Mixer 150Kg
- Pan Mixer 100Kg
- Pan Mixer 50Kg
- Hopper Pan Mixer 750Kg
- Pan Mixer Fly Ash
- Top Cover Pan Mixer
- Pan Mixer
- Hopper Pan Mixer
- Pan Mixer Roller Type
- Pan Mixer Diesel Type
- Pan Mixer 500Kg
- Refractory Pan Mixer
- Refractory Pan Mixer
- Refractory Pan Mixer 6 foot
- Refractory Pan Mixer 150Kg
- Pan Mixer 50Kg
Our company needs no introduction in the domain of offering a spectrum of Fly Ash Pan Mixer. Our pan mixer is made available on numerous specifications in order to cater to the diverse needs of clients. The pan mixer offered by us is stringently tested against various parameters of quality to dispatch a quality-driven range. Customers can avail this pan mixer from us at competitive prices.
Features
Efficient Sand Preparation
'HARDIC batch type pan mixers are specially designed with sturdy construction. Only best QUALITY and tested raw materials are used and hence long life is ensured even at high working rate. RUBBER & POLIURATHANE sealing arrangement Guarantees against any sand intrusion in the centre bearings, hinge bearings or roller bearings. Apart from the scrapers which are wearing parts in a sand mixer, wear is least for all the other components.
Constructional features :
Mullers : The PAN MIXER has two mullers with wide mulling face and proper weight to give efficient and maximum mulling action without crushing the sand. The mullers are in hinges and supported by springs which keep the mullers floating over the sand with Constant pressure. The gap between the mullers and pan plate can be easily varied to get the required strength.
Scrapers: Two scrapers are provided and are so designed that one brings the sand under the muller and the other takes it out. The scrapers are braced with tungsten carbide tips.
Crib : The crib is fabricated from MS plates and reinforced at the top and bottom to prevent any distortion while the machine is working. The crib is bolted to the pan base and is detachable for maintenance purpose
Specification:
| Capacity | Motor |
Muller Size (DIA X WIDTH) | R.P.M | Diamerer |
| 50 KG | 2 H.P | 10 X 6 (INCH) | 24 28 | 600 MM |
| 100 KG | 5 H.P | 12 X 7.1/2 (INCH) | 24 28 | 900 MM |
| 150 KG | 5 H.P | 12 X 7.1/2 (INCH) | 24 28 | 1000 MM |
| 250 KG | 7.5 H.P | 16 X 7.1/2 (INCH) | 24 28 | 1200 MM |
| 500 KG | 15 H.P | 16 X 10 (INCH) | 24 28 | 1500 MM |
| 750 KG | 20 H.P | 20 X 10 (INCH) | 24 28 | 1800 MM |
| 1000 KG | 25 H.P | 20 X 14 (INCH) | 24 28 | 2000 MM |
