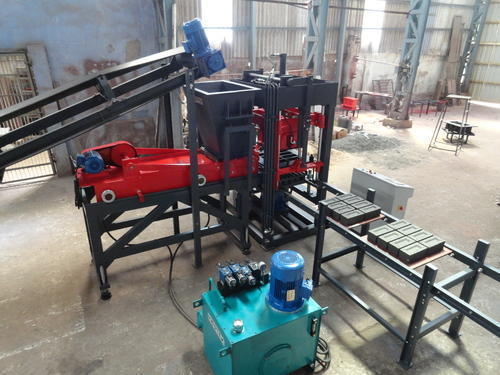

Our undying urge to succeed and create new benchmarks in the domain of manufacturing, trading and supplying Paver Block Making Machine. This block making machine is used in various construction industries for block making. Our block making machine is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered block making machine is accessible in assorted specifications to meet the needs of the customers.
Features
Less maintenance
Optimum performance
Low power consumption
Specification:
Per shift production 7,000 pavers
Main body from HEAVY PLATES & PIPES guide rod will be chromium plated
3 Stroke in a minute
4 Pavers in a Storke
6 Pavers in a Storke
Pan Mixer Details:
Pan : 1500 mm
Side wall height: 400 MM height
Bottom plate: 10 mm M.S.
Side wall plate: 4 mm M.S
Motor: 5 h.p ,1440 rpm 3 phase
Power (Load):
Hydraulic: 10 HP
Taper conveyor: 2 HP
Down Conveyor: 1 HP
Vibrator: 2 H.P
Pan Mixer: 5 HP
Total Power: 20 HP
Hydraulic Cylinder:
Ramming: 1 no
Box: 2 nos
Feeder: 1 no
Wooden Pallet Conveyor: 1 no
Total: 1 nos
Conveyor Belt:
Conveyor belt thickness: 12 mm & length 20 foot
P.L.C Control:
Well designed plc control system
Auto pallet function: for hydraulic
Tank capacity for hydraulic oil: 300 ltrs
Single Layer Feeder box Electrical Plc control panel
Bricks removal: through 15 ft conveyor
Total weight: 3500 kgs
Operating pressure: 220 bar-70 ton
Mixing rough material: from pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
