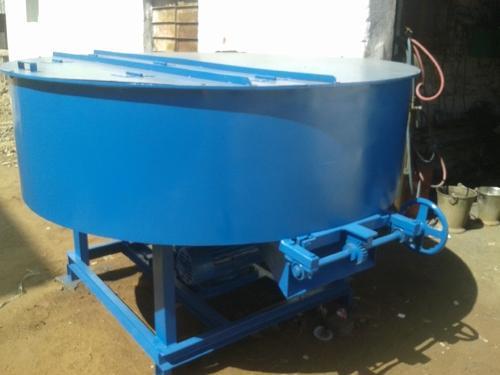

Concrete Pan Mixer 750-kg

Hardic Engineering is top rated Concrete Pan Mixer Manufacturer Ahmedabad. We bring forth for our clients an extensive collection of Concrete Pan Mixer. The offered pan mixer is manufactured with the help of best quality material and sophisticated technology, in observance with set industrial standards. In addition, this pan mixer is tested by our in-house quality experts on numerous parameters in order to ensure that we are offering only defect free range.

Features

Compact design

Robust construction

Longer service life

Specifications:

Weight: 750 kg

Side wall height: 400 MM height

Bottom plate: 10 mm M.S.

Side wall plate: 4 mm M.S

Roller size: 16 X7 1/2 (D X W).

Specification:

Capacity	Motor	Muller Size (DIA X WIDTH)	R.P.M	Diamerer
50 KG	2 H.P	10 X 6 (INCH)	24 28	600 MM
100 KG	5 H.P	12 X 7.1/2 (INCH)	24 28	900 MM
150 KG	5 H.P	12 X 7.1/2 (INCH)	24 28	1000 MM
250 KG	7.5 H.P	16 X 7.1/2 (INCH)	24 28	1200 MM
500 KG	15 H.P	16 X 10 (INCH)	24 28	1500 MM
750 KG	20 H.P	20 X 10 (INCH)	24 28	1800 MM
1000 KG	25 H.P	20 X 14 (INCH)	24 28	2000 MM
